WELDING USING STAINLESS STEEL WIRE: EXAMPLES AND HOW TO MAKE
Fancy Case by steinless steel wire
Fancy Case

How To Make A Fancy Case

We will show here the process of making a fancy case as shown in the left picture.
Clicking the left picture will open another window with a manual on detailed making orders and more pictures.

Tissue Paper Holder by steinless  steel wire
Tissue Paper Holder

Spot Welder changes stainless steel into familiar metal items.

Welding stainless steelwire using stick electrode
Welding using stick electrode
Welding stainless steelwire using stick electrode
Fixate stick electrode to the table and weld
steinless steel wire
Arrange the pieces so that they do not fall down
CREATING A SMALL BASKET USING STAINLESH STEEL MESH
Using copper plate, weld the cylindrical part
1. Using copper plate, weld the cylindrical part

Made up cylindrical part
2. Weld some points to create the cylinder

electrode for special welding
3. Using a copper plate, create a subsidiary electrode

Weld the base part

4. Weld the base part

The finished view of a stainless steel mesh basket.

5. The finished view of a stainless steel mesh basket.

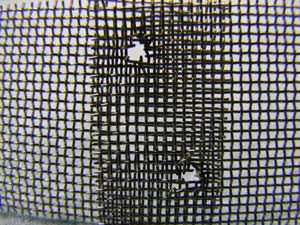

broken mesh by overcurrent

NOTE: To prevent disjunction, please be careful on selecting the electrodes and the current used.

Power controller HSW-PC1 for HSW-01A,02A
POWER CONTROLLER HSW-PC1
[ IMPORTANT ]
Welding with stainless steel mesh requires control of welding voltage.

WELDING WITH STAINLESS STEEL PLATE

Stainless steel cylinder
Make a cylinder from a stainless steel plate as shown in the picture. In this picture, stainless steel plate 0.3 mm in thickness was used.

NOW PRINTING

�@1. Cut the stainless plate in the width needed for welding, and then coil it around a cylinder with 20-30% smaller diameter to create the shape.

Pinch with it welding pinset and then weld

�X�e�����X�~��

ainless steel cylinder

CLICK TO ENLARGE

Useing tweezer electrode for weldeing

Welded Stainless Plate and stick

Weld the stainless steel stick and the plate

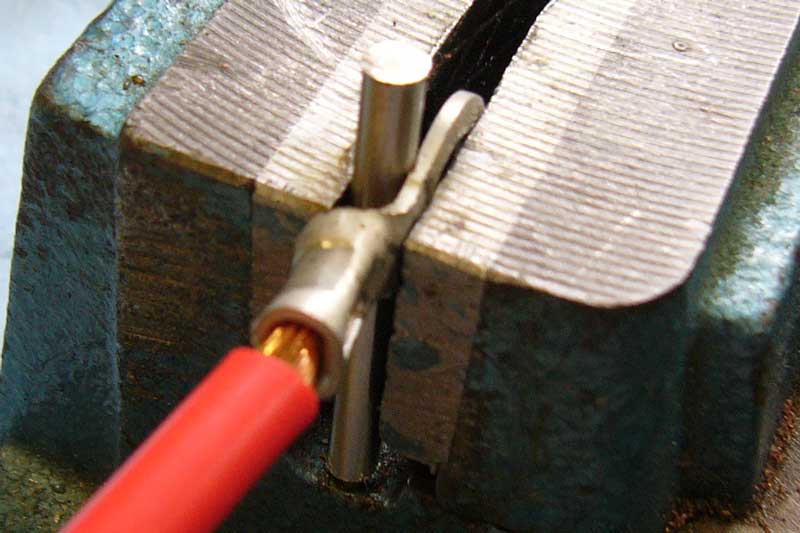

Fixate the pole to the direct terminal

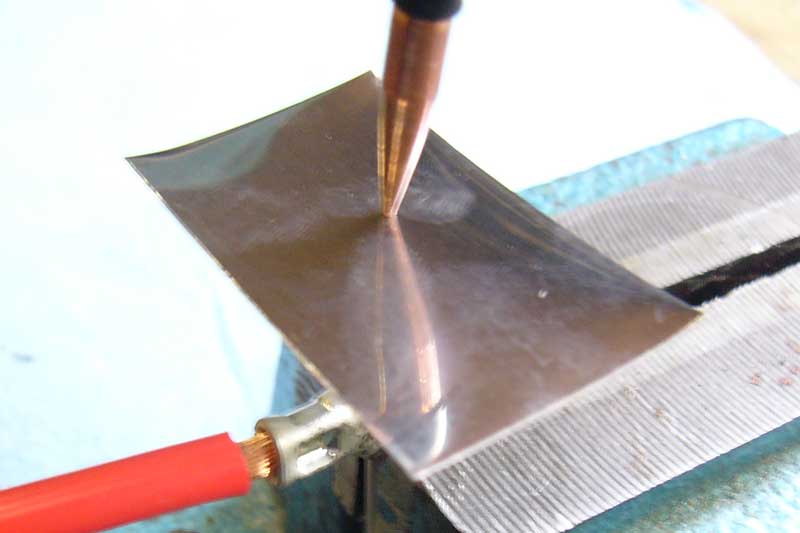

Apply welding pen to the plate from above

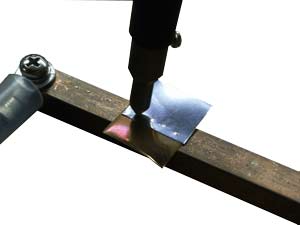

Weld the 0.15mm-thick copper plate and the 0.1mm-thick stainless plate
(HSW-02A+HSW-EB1�{PSW-P2)


Weld US316's radius 13 M8 screw
nut to SUS316 0.4-thick plate (HSW-02)

Stainless steel plate and iron wire controller (HSW-02)
ABOUT WELDING USING STAINLESS STEEL FIBER

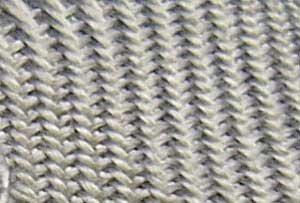

Stainless steel fiber

Stainless steel fiber

Stainless steel fiber called NASLON

CLICK TO ENLARGE

Since stainless fiber has a thickness of micron-scale, it is easily disjointed with a high welding current. Thus it is important to select carefully the current and the electrodes used.

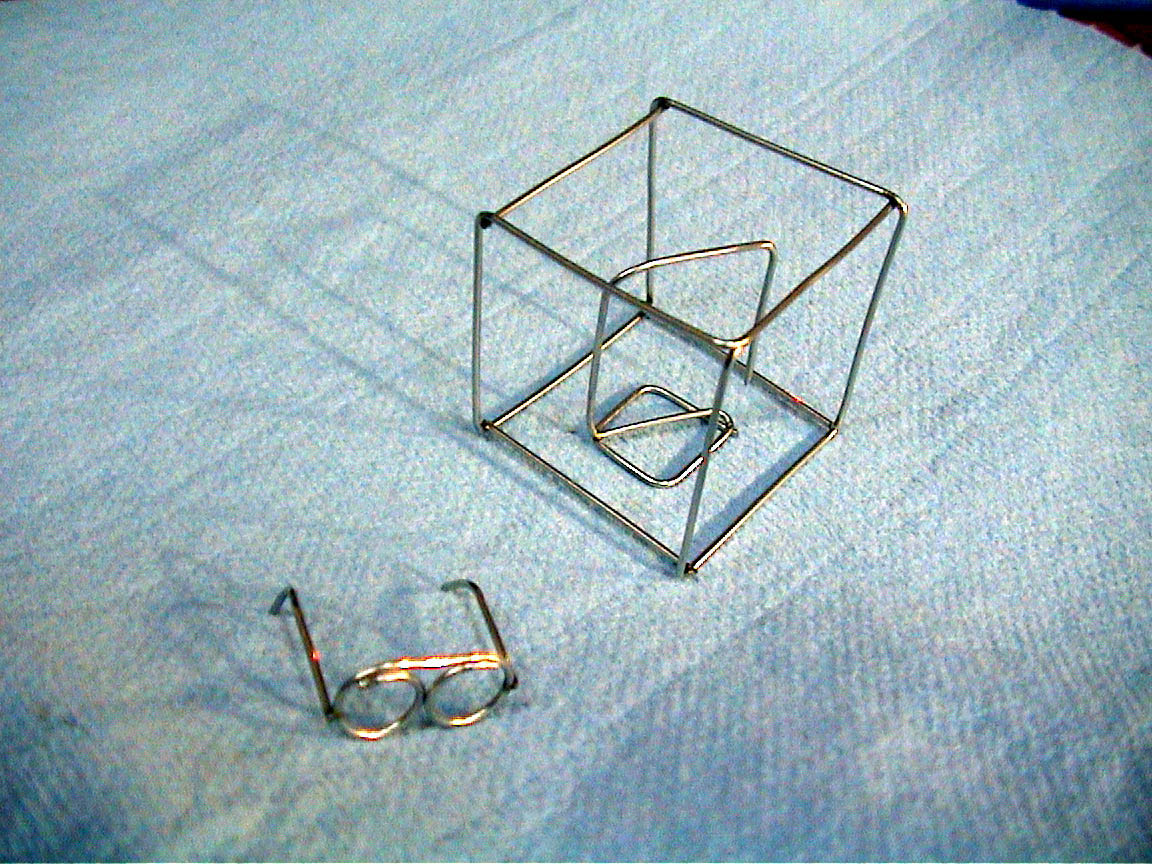

EXAMPLES USING STAINLESS STEEL WIRE (diameter less than 1 mm)

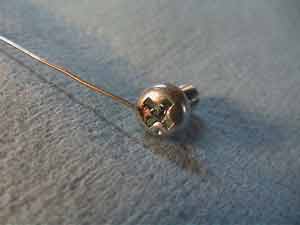

Stainless steel wire 0.5 mm in diameter and 3 mm iron screw (HSW-02)
Stainless chain
Made up finger gurad

Strengthening a self-made spring's end
